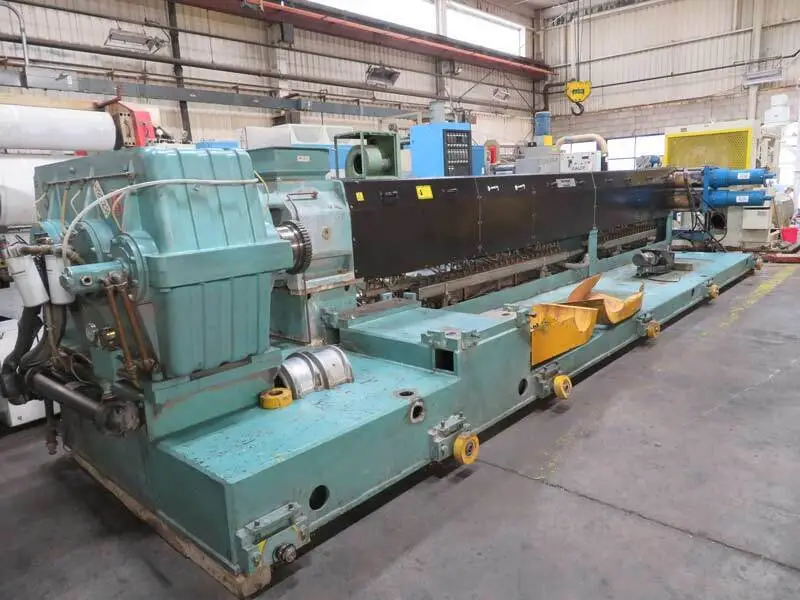

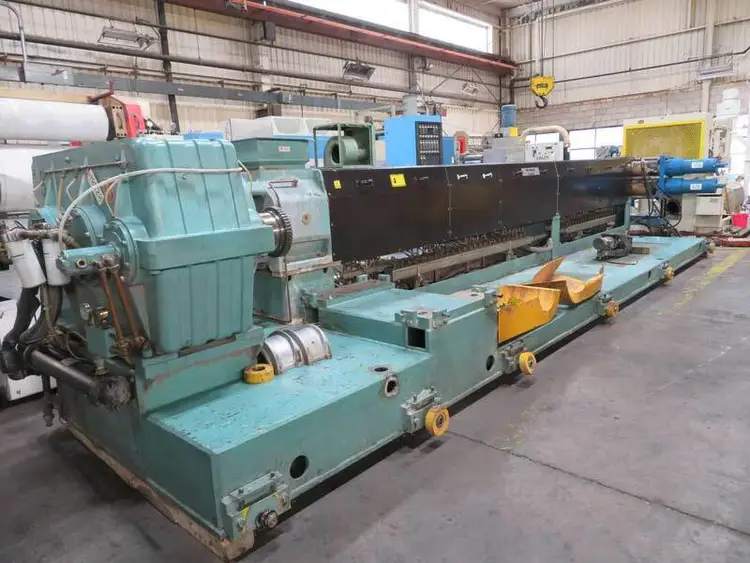

Davis Standard Model 80IN80HT 8" 32:1 L/D Extruder

Description

S/N AA454

having a seven (7) zone electrically, heated, water cooled (closed loop), and vented barrel at a 44" center-line.
Shop Order 72635. Gearbox has a reduction ratio of 10.15:1 and is rated at 1080 HP at a service factor of 1.5.
Gearbox is direct driven in a wrap-around manner by a 900 HP Reliance Super RPM D/C motor. Liquid cooling
system with heat exchanger for gearbox protection. 16" x 9 1/2" on center feed throat entrance. PSI continuous
screen changer with stand is mounted on the extruder discharge. 16" x 9.5" feed throat with magnet. Last used
in the extrusion of PP sheet. Manufactured 9/2001. Extruder weighs 52,000 pounds. Motor weighs 11,000
pounds. Offered less SCR and temperature control panel. Rare opportunity to purchase an extruder of this size
